    High Strength ASU Outdoor Fiber Optic Cable with Unitube Design for Long Span Aerial Installations

    Ask Lasest Price
    Brand Name : jiqian/haiso/Customize/ ODM
    Model Number : ASU
    Certification : ISO9001 ROHS CE-EMC FCC SDOC
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60000KM/month
    Delivery Time : 3-5 days, it depends on your quantity
    • Product Details
    • Company Profile

    High Strength ASU Outdoor Fiber Optic Cable with Unitube Design for Long Span Aerial Installations

    Product Title:
    Outdoor ASU Fiber Optic Cable | 6–12 Core, 80–120m Span

    Overview:
    Lightweight, self-supporting unitube cable for outdoor long-span use. Non-metallic strength members ensure safety and stable performance in harsh conditions.


    Technical parameters:

    No. of cable1-12
    Fiber ModelG.652D
    Strength MemberMaterialFRP
    Diameter(±0.05)mm1.8

    Loose Tube

    		MaterialPBT
    Diameter(±0.06)mm1.8
    Thickness(±0.03)mm0.35
    The Max.Core NO./Tube12
    Outer SheathMaterialPE
    Cable Diameter(±0.2)mm6.7
    Cable Weight(±5)kg/km38

    Min. bending radius

    		Without Tension10.0×Cable-φ
    Under Maximum Tension20.0×Cable-φ

    Temperature range

    (℃)

    		Installation-20~+60
    Transport&Storage-40~+70
    Operation-40~+7

    Key Features:

    • Self-supporting, no messenger wire

    • Compact unitube, lightweight

    • High tensile strength, 80–120m spans

    • All-dielectric, EMI-free

    • UV- and weather-resistant

    • Single-mode, 6–12 cores

    Applications:

    • Overhead telecom lines

    • Rural/suburban networks

    • FTTH/FTTx access

    • Campus connections

    • MAN networks

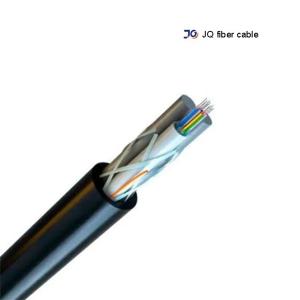

    Structure:

    • Fiber: 2–12 cores, Single Mode (G652D / G657A1 / G657A2)

    • Construction: Loose tube with water-blocking gel

    • Fiber Brand: YOFC

    • Armor: Non-armored, mini ADSS, all-dielectric with FRP strength members

    • Strength Member: Two FRP rods for extra tensile support

    • Outer Jacket: Black PE, UV- and moisture-resistant


    FAQ – ASU Fiber Optic Cable

    Q1: What is an ASU cable?
    A1: A non-metallic, self-supporting unitube cable for outdoor aerial use, offering high tensile strength and long spans without messenger wires.

    Q2: What span options are available?
    A2: ASU 80 (up to 80m), ASU 100 (up to 100m), and ASU 120 (up to 120m).

    Q3: What fiber types are supported?
    A3: Single-mode G652D, G657A1, and G657A2, with 2–12 cores.

    Q4: Safe near power lines?
    A4: Yes, fully dielectric and EMI-free.

    Q5: OEM or custom services?
    A5: Yes, including custom cores, fiber types, and logos.

    Q6: How is it protected?
    A6: UV- and moisture-resistant PE jacket, aramid/FRP strength members, and gel-filled loose tubes.

    Q7: Typical installation environments?
    A7: Aerial telecom, FTTH/FTTx, campus, inter-building, and metro/backbone networks.
