G652D G657A LSZH FTTH Fiber Optic Drop Cable 1 2 4 Core

Ask Lasest Price
Brand Name :	JQ/OEM
Model Number :	GJYXCH/GJYXFCH
Certification :	ISO9001 ROHS CE-EMC FCC SDOC
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100KM Per day
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

G652D G657A LSZH FTTH Fiber Optic Drop Cable 1 2 4 Core

FTTH G652D G657A LSZH single mode 1 2 4 core Outdoor indoor Fiber drop cable

Description

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in fiber optic network.

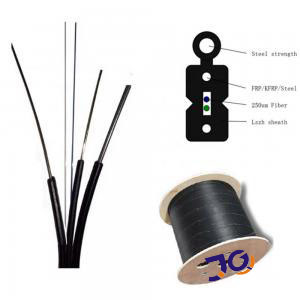

The fibers is position between two parallel steel wire. Then this cable is completed with black or white LSZH sheath.

Features

Self Supporting Construction

Fiber:250µm colorfiber G657A1
Self-supported Member:Steel Wire or Fiberglass reinforced plastic (FRP)

Outer Jacket:UV and Flame resistant LSZH

Application

• Outdoor/Indoor wiring system

• FTTH, terminal system

• Indoor shaft,building wiring

Product detail

G652D G657A LSZH FTTH Fiber Optic Drop Cable 1 2 4 Core

Fiber Parameters

Type	Fiber attenuation(+20℃)				OFL	Band Width	10G Ethernet link length	Minimum bending radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Condition	Typical value	MAX	Typical value	MAX	850/1300nm	850nm	850nm	/
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

Technical parameters

Product Model	Fiber Count (core)	Cable Diameter(mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term(N)	Crush Resistance Long/ShortTerm(N)	Bending Radius Static/Dynamic
GJYXCH	1	(2.1+0.1)*(5.1+0.1)	21	1500/2500	500/1300	15/30
GJYXCH	2	(2.1+0.1)*(5.1+0.1)	21	1500/2500	500/1300	\|15/30
GJYXCH	4	(2.1+0.1)x(5.1+0.1)	21	1500/2500	500/1300	15/30
GJYXFCH	1	(2.1+0.1)*(5.1+0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	2	(2.1+0.1)x(5.1+0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	4	(2.1+0.1)x(5.1+0.1)	20	1500/2500	500/1300	15/30

Package

Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box

G652D G657A LSZH FTTH Fiber Optic Drop Cable 1 2 4 Core
