Product Description:

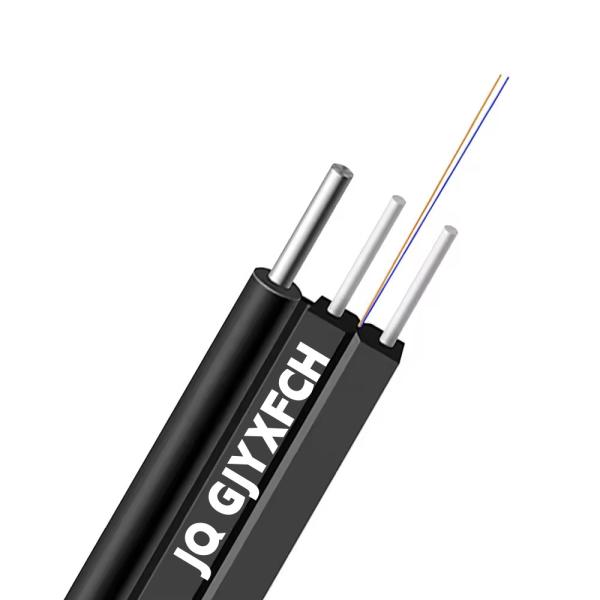

GJYXFCH FTTH drop cable
The optical fiber unit is positioned in the centre. Two parallel
Fiber Reinforced Plastics (FRP) are placed at the two sides. A
steel wire as the additional strength member is also applied. Then
the cable is completed with a black or color LSZH sheath.
Characteristics:
1.Special low-bend-sensitivity fiber provides high bandwidth and
excellent communication transmission property;
2.Two parallel FRP strength members ensure good performance of
crush resistance to protect the fiber; · Simple structure, light
weight and high practicability;
3.Novel flute design, easily strip and splice, simplify the installation and maintenance;
4.Low smoke, zero halogen and flame retardant sheath.
Application:
1.Outdoor aerial application
2.Used in the FTTH projects
3.High speed optical routes in building
4.High performance optical network operation
Specification:
Fiber count | 1F/2F/4F | |||||
Attenuation | 1310nm:≤0.34 1550nm:≤0.21 | |||||
Color Of fiber | Blue Orange Green Brown | |||||
Fiber Type | G652D/G657A1/G657A2 | |||||
Strength member | Steel wire/FRP/KFRP | |||||
Outer sheath | LSZH Lower smoke zero halogen frame retardant & UV Anti | |||||
Cable Diameter dimensions | 2.0( Height) × 3.0W ± 0.1 mm(width) | |||||
Operation temperature range | -20 ℃ to + 70 ℃ | |||||
Installation temperature range | -0 ℃ to + 60 ℃ | |||||
Transport and storage temperature range | -20 ℃ to + 70 ℃ | |||||
Tension Load (N) | Short term :800N Long term :500N | |||||
Crush Load(N) | Long term 1000 N/100mm Short term:2200N/100mm | |||||
Minimal installation bending radius | 30 x OD | |||||
Minimal operation bending radius | 15 x OD | |||||
Cable marking | The marking length 1meter apart , as required |
