Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines

Ask Lasest Price
Brand Name :	Jiqian
Model Number :	MGTSV33
Certification :	CE/ISO9001
Price :	200-900USD/KM
Payment Terms :	L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :	60000KM/month
Delivery Time :	3-5 days, it depends on your quantity
MOQ :	1KM

Add to Cart

Product Details
Company Profile

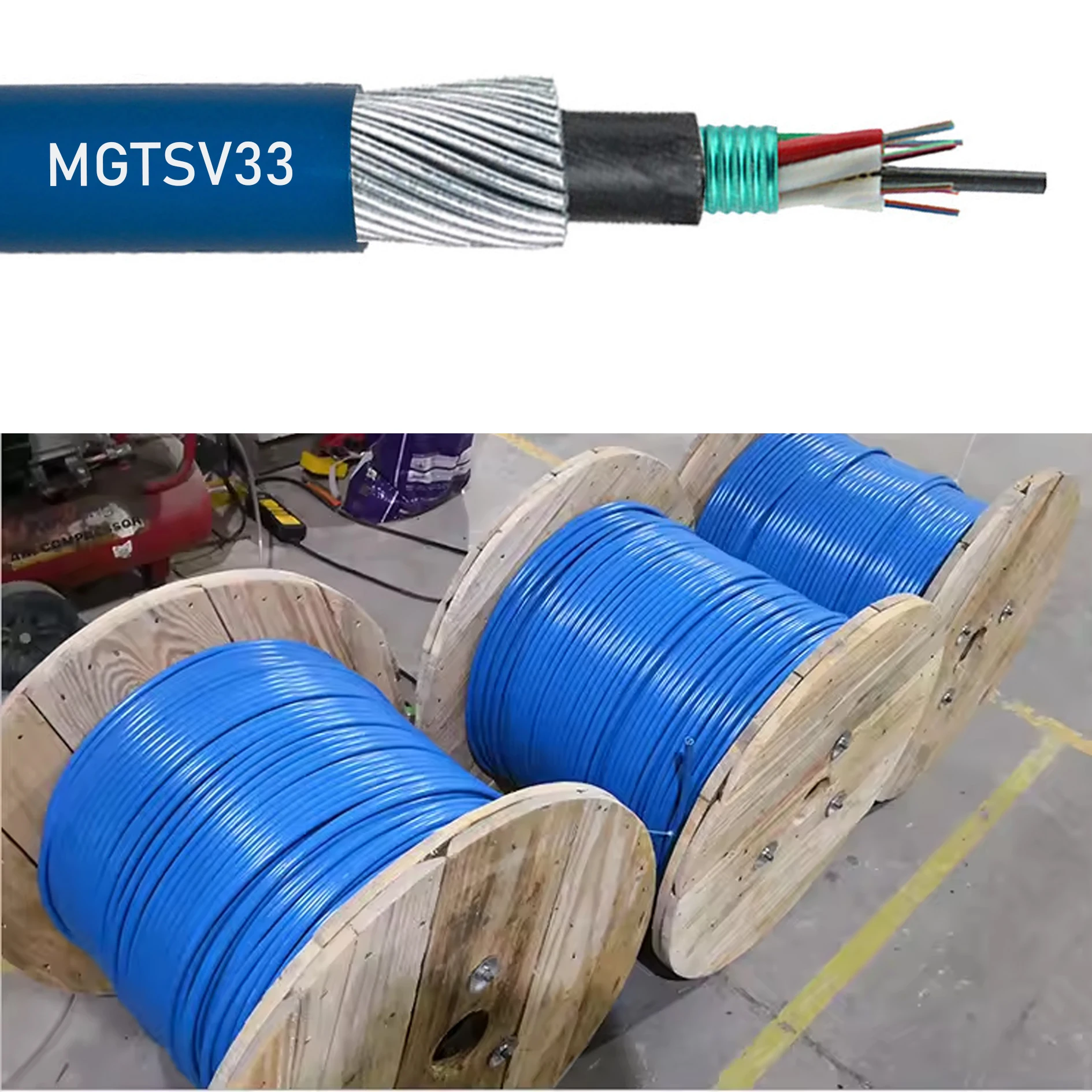

Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines

Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For Coal Mines

Application

1. Mine
2. tunnel
3. pipeline

Factory LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For mines

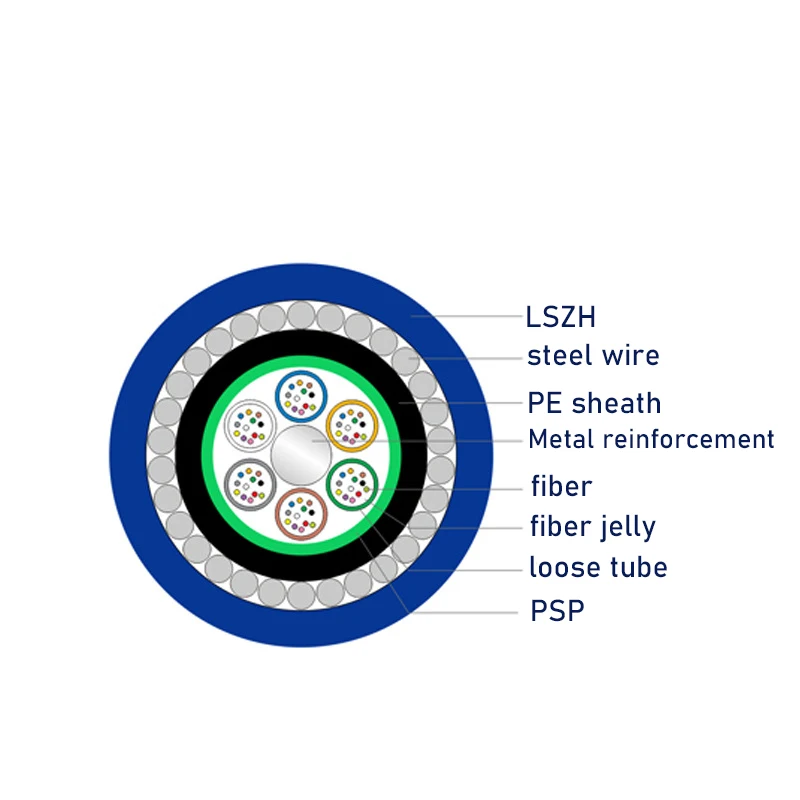

Product description:

* Double sheath structure with good compression resistance
* Low smoke and halogen free outer sheath with flame retardant effect

* Steel wire around with good mechanical property

Product features:

1. Temperature characteristics and water resistance are good

2. Good compression and softness

3. suitable for mine tunnel pipeline

4. double sheath + armour + steel wire surrounded to make it durable

Specification

Product Name	LSZH MGTSV33 Steel Wire Armored Mining Optical Fibre Cable Flame Retardant G652D Blue Optical Cables For Coal Mines
Fiber Count	4-288 Fibers,can be customized according to customers' requirement
Fiber Type	Singlemode G.652D / G.657A1
Outer Jacket Material	LSZH
Application	Mine tunnel pipeline
Cable Length	1km,2km,3km,5km per drum,can be customized
Test Wavelength	1310/1550nm
Operation Temperature	-40℃ to +70℃
Color	usually black,can be customized
OEM	YES

Fiber Parameter

Item		Unit	Specification
Fiber Type			G. 652
Mode field diameter	1310nm	μm	9.2 ± 0.4
Mode field diameter	1550nm	μm	10.4 ± 0.8
Cladding diameter		μm	125.0 ± 1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	242 ± 7
Coating/cladding concentricity error		μm	≤12
Cable cut-off wavelength		nm	≤12
Attenuation Coefficient	1310nm	dB/km	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Cable parameter for reference

Fiber quantity	Diameter for reference (mm)	weight for reference (kg/km)	Allowable tension (N) long/short term	Allowable side pressure (N) long/short term	bending radius Static/ dynamics
2-12	13.6	390	4000/10000	1000/3000	12.5D/25D
14-24	15.2	475	4000/10000	1000/3000	12.5D/25D

Related Products

Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

Packing & Delivery

Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity

Company Profile

Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
